STEALTH Cigarette Buster - Covert Air Vent Mount
Model 79 Series

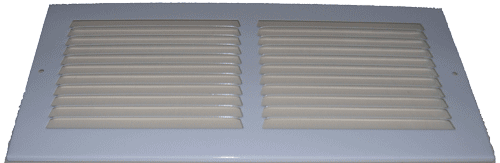

A Cigarette Smoking Detector concealed in an AIR VENT. Detector can work alone via internal alarm, transmit signal to nearby horn/strobe, or be integrated with remote paging system. System Selection Guide explains options.

Print-ready datasheet




Models
    • 7910 - Battery - Long Range wireless output to receiver (up to 1000') integrates with paging system (up to 1.5 miles)
    • 7920 - Battery - Local (internal) alarm
    • 7930 - Battery - Short Range wireless output (20 - 50 ft)
    • 7940 - 12 vDC - Wired relay output (up to 5000 ft)
    • 7950 - 12 vDC - Local (internal) alarm and wired relay output
    • 7978 - Battery - Local (internal) voice message
    • 7960 - ac 120 v - SMS Text Messaging



Technical Information

  • Physical
    • Width - 7.75 inches (20 cm)
    • Length - 13.25 inches (34 cm)
    • Height - 2.75 inches (7 cm) above vent
    • Weight - 20 oz (0.6 kg)
    • Installation: 2 screws
  • Electrical
    • Four AA Batteries (most models) or 2 6V batteries (model 7978)
    • 12 vDC, 4.7 ma
    • Output Relay contact rating 3A
    • Open collector output
  • Performance
    • Coverage - 200 sq. ft.; 360 degree Line of Sight (LOS)
    • Battery Life - One Year
    • Delays - 0 Sec or 30 sec
    • Latch time - 3 seconds or 30 seconds
    • Alarm volume (models 7920 and 7950) - 85 dB
Covered by US Patent 6,545,608                100% in-house tested before shipping
