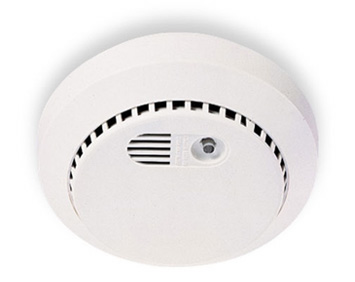

STEALTH Cigarette Buster - Smoke Detector Shell
Model 52 Series

Common household smoke detector conceals cigarette smoking detector.

Cigarette smoke detector can work alone via internal alarm, transmit signal to nearby horn/strobe, or be integrated with remote paging or email alert system.
Our System Selection Guide explains these options.              Print-ready datasheet




Models
    • 5210 - Battery - Long Range wireless output to receiver (up to 1000') integrates with paging system (up to 1.5 miles)
    • 5220 - Battery - Local (internal) alarm
    • 5230 - Battery - Short Range wireless output (20 -50 ft)
    • 5240 - 12 vDC - Wired relay output ( up to 5000')
    • 5250 - 12 vDC - Local (internal) alarm and wired relay output
Technical Information
  • Physical
    • Diameter - Approx 6" (15 cm)
    • Height - 1 3/4 " (5 cm) all models except 5210 (3" / 7.5 cm)
    • Weight - 10 oz ( 0.3 kg)

  • Electrical
    • One 6V Battery or 12 vDC, 4.7 ma
    • Output Relay contact rating 3A
    • Open collector output
  • Performance
    • Coverage - 200 sq ft; 360 degree Line of Sight (LOS)
    • Battery Life - One Year
    • Delays - 0 Sec or 30 sec
    • Latch time - 3 seconds or 30 seconds
Covered by US Patent 6,545,608                100% in-house tested before shipping
