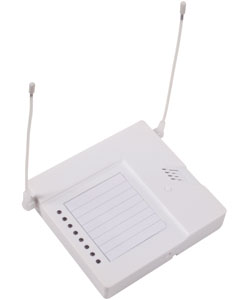

The RF Receiver works with detector models ending with "10" such as 5210, 7410 that contain a high power RF transmitter. These units detect a person lighting up and transmit a coded signal to the RF Receiver. The receiver is paired with a paging transmitter shown below.

• Weight 34 oz
• 11" x 8.5" x 1.75"
• Environment 32 to 140 deg F. (indoor only)
  up to 90% relative humidity, non-condensing.
• 900 MHz

Our long range system sometimes requires a signal repeater. In open air the long range detectors can transmit up to about 1000' but when encumbered by concrete walls and other obstacles signal range can be diminished. The repeater solves this challenge by repeating signals it receives wirelessly and re-transmits them to the RF Receiver – Model 7615 above.

• 6.5" x 3.5" x 1.0"
• Environment 32 to 140 deg F. (indoor only)
  up to 90% relative humidity, non-condensing.
• 900 MHz
• 14 VAC (Transformer Included)

The paging transmitter shown on to the left is connected to the RF Receiver (Model 7615) above and transmits to pagers worn by your staff. The pager receives a signal from the paging transmitter and displays the detector number (bathroom, or other monitored area). Pager buzzes and alerts the wearer that someone is lighting up!

• Powerful 27 MHz Transmitter
• Up to 1.4 Mile range
• Includes brackets for optional wall mounting.

Belt Pager. Has tone/vibration option. Displays code of the detector(s).

These units can detect a person lighting up and transmit a text message at unlimited distance.  Staff can receive text immediately and catch smoker in the act or can track infractions.

Text messaging works with detector models ending with "60" such as 7460. Select from any of these models:
   7460 - Surface Mount
   7860 - Speaker Grill
   7960 - Air Vent
