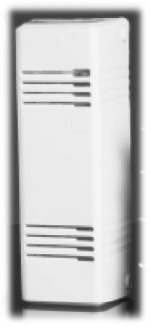

Cigarette Smoke Detector: Fake Deodorizer

STEALTH Cigarette Buster - Fake Deodorizer Mount
Model 77 Series

A Cigarette Smoking Detector concealed in FAKE DEODORIZER. Detector can
work alone via internal alarm, transmit signal to nearby horn/strobe, or be
integrated with remote paging system.
Our System Selection Guide explains these options. Print-ready datasheet

STEALTH SYSTEMS:
   Internal Alarm
   Common Courtesy
   Short Range Wireless
   Central Office Receiver
   Wireless Paging System
   Hardwired
   Text Messaging
   Evidence Collection
System Selection Guide

DETECTORS:
Cigarette Smoking Detectors:
   5200 - Smoke Detector Shell
   7400 - Surface Mount
   7600 - Fake Sprinkler Head
   7700 - Deodorizer Mount
   7800 - Speaker Grill
   7900 - Air Vent
       7978 - Air Vent Talker
2000 - Loiter Alarm
3000 - Vehicular Smoke Detector
8000 - Cigarette Smoke Detector
9000 - 2nd Hand Smoke Detector

RECEIVERS:
   Wired or Short Range Wireless
   Central Office Wireless
   Long Range Wireless
All CigaretteBuster^TMProducts

PROVEN TRACK RECORD:
Customer List
What Our Customers Say
HAVE DINNER ON US!
...with New Customer Referral
Central Office Receiver

Wireless Paging System
   Hardwired
System Selection Guide

DETECTORS:
Cigarette Smoking Detectors:
   5200 - Smoke Detector Shell
   7400 - Surface Mount
   7600 - Fake Sprinkler Head
   7700 - Deodorizer Mount
   7800 - Speaker Grill
   7900 - Air Vent
       7978 - Air Vent Talker
2000 - Loiter Alarm
3000 - Vehicular Smoke Detector
8000 - Cigarette Smoke Detector
9000 - 2nd Hand Smoke Detector

RECEIVERS:
   Wired or Short Range Wireless
   Central Office Wireless
   Long Range Wireless
All CigaretteBuster^TMProducts

PROVEN TRACK RECORD:
Customer List
What Our Customers Say
HAVE DINNER ON US!
...with New Customer Referral

WARRANTY
LINKS
ABOUT US
SITE MAP

Models

7710 - Battery - Long Range wireless output to receiver (up to 1000') integrates with paging system (up to 1.5 miles)
7720 - Battery - Local (internal) alarm
7730 - Battery - Short Range wireless output (20 - 50 ft)
7740 - 12 vDC - Wired relay output (up to 5000')
7750 - 12 vDC - Local (internal) alarm and wired relay output

Technical Information

Physical

Height - 9.5 inches (24 cm)
Depth - 3 inches (7.6 cm)
Width - 3 1/2 inches (8.9 cm)
Weight - 1 lb ( .45 kg)
Installation: 2 screws or velcro

Electrical

Four AA Batteries
12 vDC, 4.7 ma
Output Relay contact rating 3A
Open collector output

Performance

Coverage - 200 sq. ft.; Line of sight (LOS)
Battery Life - One Year
Delays - 0 Sec or 30 sec
Latch time - 3 seconds or 30 seconds
Alarm Volume (models 7720 and 7750) - 85 dB

Covered by US Patent 6,545,608 100% in-house tested before shipping
